Product InformationMTW-7110

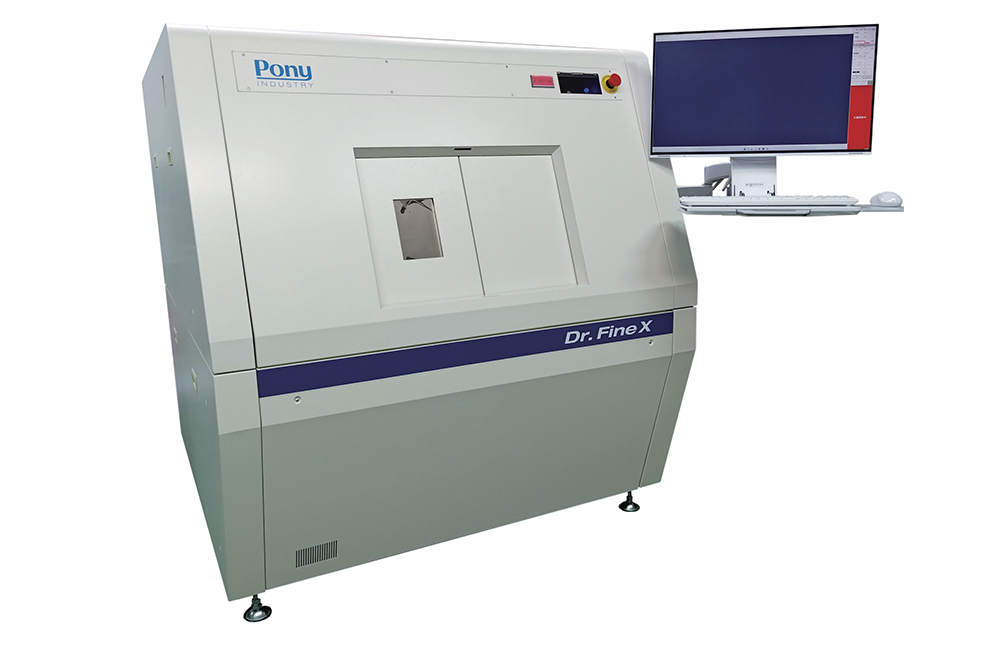

Large Off-Line X-ray Inspection Systems
This model is equipped with a large stage (500mm x 600mm) and is compatible with large substrates and large samples.
We can provide various X-ray generators, X-ray detectors, and stage mechanisms to suit your needs.
Specifications
| Model Type | MTW-7110（selecting transmissive target sealed type ofxray tube ) |
| Max. Tube Vol. / Max.Tube Curr. (Max. Output) | 110kV / 0.2mA(16W)/td> |
| Min. Focus Size | 2µm |
| X-ray Detector | CMOS FPD |
| X-ray Detector Active Area(Pixel Size) | 145 x 114 mm（49.5 µm） |
| Geometric Mangification | Approx. 100 timers |
| Oblique View | Yes |
| Max. Geometric Magnification at Oblique View | Approx. 80 timers |
| Max. tilt angle | Approx. 60 Deg. |
| Resolution | 7LP / mm |
| Sample Table Size (mm) | 500×600 |
| X,Y,Z, Axis Sroke (mm) | 500×500×220 |
| Table Load Capacity (at Equal Load) | 10kg |
| System Siz (W×D×H)(mm) | 1370×1485×1510（Protrusions not included）/td> |
| System Weight | 1400kg |
| X-ray Leakage Rate | 1μSv/h以下 |
| Power Supply | 50 / 60Hz AC100V±10％ 15A (Type B, 3-Pin Plug) |
