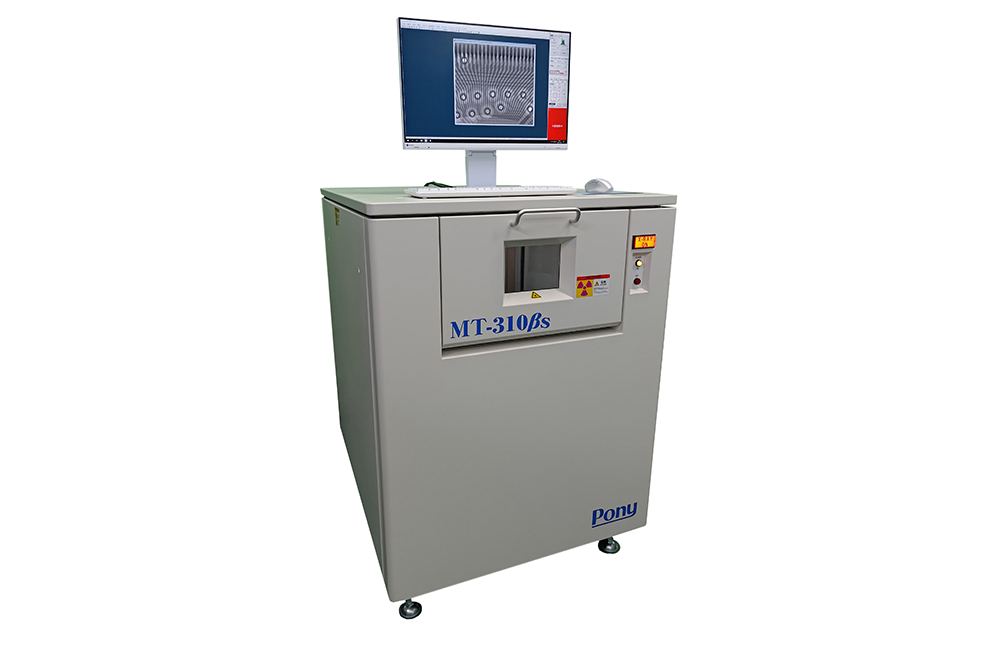

Product InformationMT-310βS / MT-310βA / MT-390βA

Off-Line X-ray Inspection Systems
Compact system suitable for inspectrion of pcb with bga.Can handle boards up to M-size.
3 models: Vertical observation only (MT-310βS) and Oblique View models(MT-310βA, MT-390βA).

Inquiries

Specifications

Model Type MT-310βS MT-310βA MT-390βA
Max. Tube Vol. / Max.Tube Curr. (Max. Output) 100kV / 0.25mA(10W) 100kV / 0.25mA(10W) 90kV / 0.25mA(10W)
Min. Focus Size 5µm 5µm 5µm
X-ray Detector CMOS FPD CMOS FPD CMOS FPD
X-ray Detector Active Area(Pixel Size) 57 x 64 mm（49.5 µm） 57 x 64 mm（49.5 µm） 57 x 64 mm（49.5 µm）
Geometric Mangification Approx. 30 timers Approx. 30 timers Approx. 30 timers
Oblique View No Yes Yes
Max. Geometric Magnification at Oblique View - Approx. 15 timers Approx. 20 timers
Max. tilt angle - Approx. 45 Deg.（image center） Approx. 45 Deg.（image center）
Resolution 7LP / mm 7LP / mm 7LP / mm
Sample Table Size (mm) 370×320 370×320 370×320
X,Y,Z, Axis Sroke (mm) 350×300×200 350×300×200 350×300×200
Table Load Capacity (at Equal Load) 3kg 3kg 3kg
System Siz (W×D×H)(mm) 830×1045×1155（Protrusions not included） 830×1045×1155（Protrusions not included） 830×1045×1155（Protrusions not included）
System Weight 600kg 600kg 600kg
X-ray Leakage Rate Less Than 1μSv/h以下 Less Than 1μSv/h以下 Less Than 1μSv/h以下
Power Supply 50 / 60Hz　AC100V±10％　15A (Type B, 3-Pin Plug) 50 / 60Hz　AC100V±10％　15A (Type B, 3-Pin Plug) 50 / 60Hz　AC100V±10％　15A (Type B, 3-Pin Plug)
